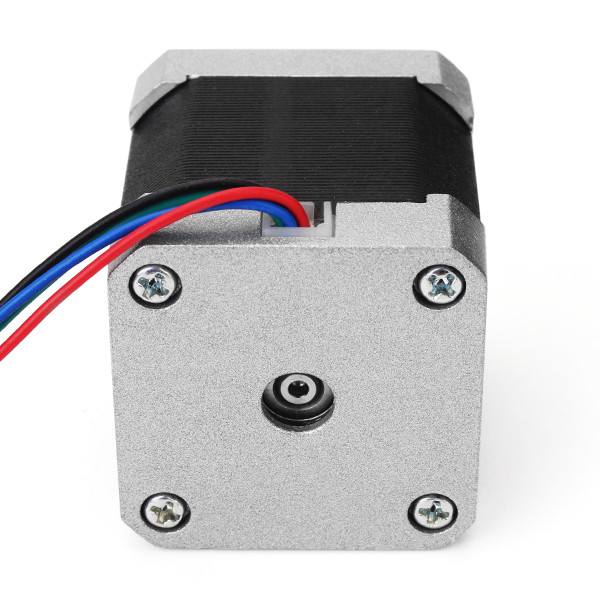

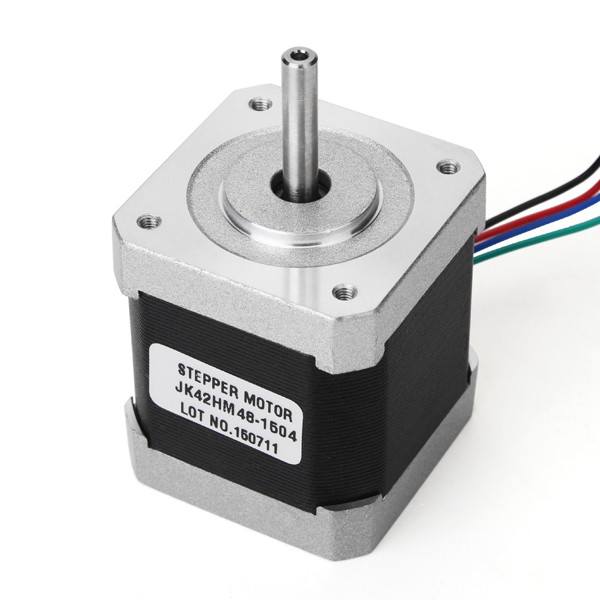

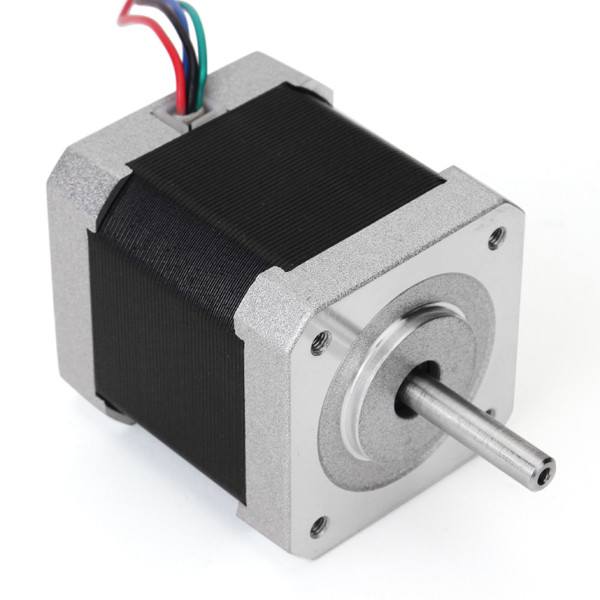

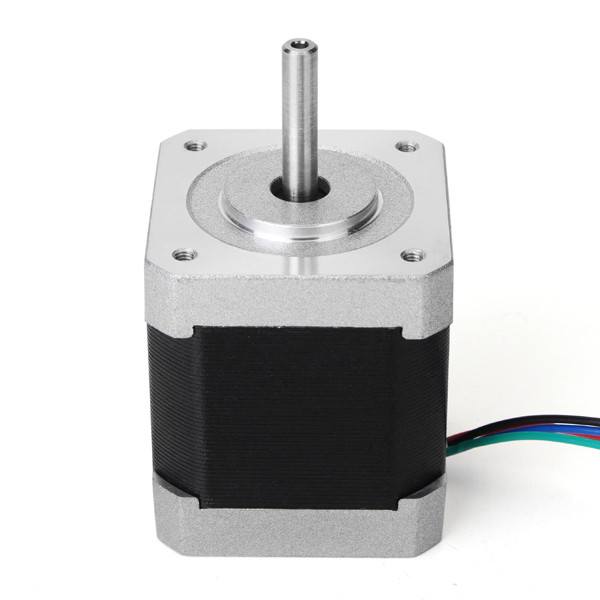

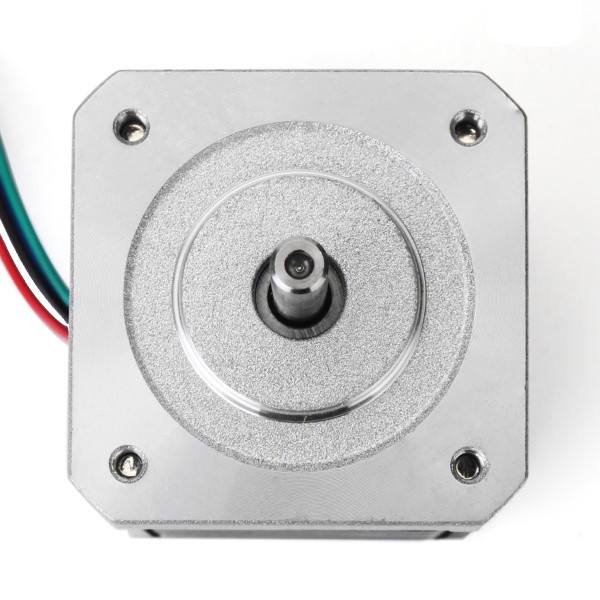

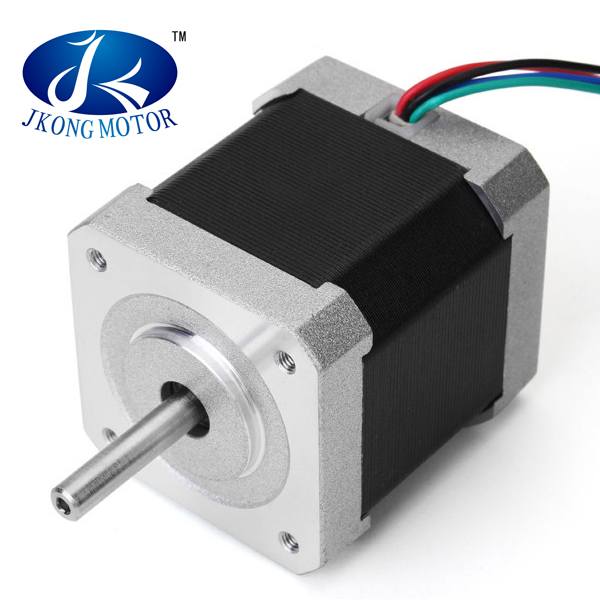

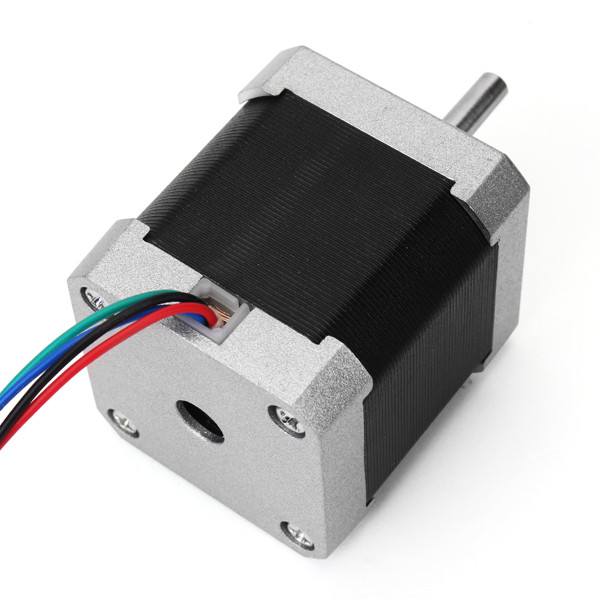

JKM NEMA17 42mm Two Phase 0.9 Degree Hybrid Stepper Motor 48mm Length 1.5A For CNC Router
Price
$21.62
Secure Rocket Network checkout
Description
Description:
JKM NEMA17 42mm Two Phase 0.9 Degree Hybrid Stepper Motor 48mm Length 1.5A For CNC RouterSpecification:
Brand: JKM
Model Number: JK42HM48-1504
Diameter of axle: 5mm
Motor length: 48mm
Boundary Dimension:42*42mm
Size: 42mm x 42mm x 48mm
Holding Torque:4.4Kg.cm
Certification: CE
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.
Genaral Specification:
Electrical Specification:
| Item | Specifications |
| Step Angle | 0.9° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
Electrical Specification:
| Model No. | Step Angle | Motor Length | Rate Voltage | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | V | A | Ω | mH | kg.cm | No. | g.cm | g.cm | Kg | |
| JK42HM48-1504 | 0.9 | 48 | 4.35 | 1.5 | 2.9 | 6.5 | 4.4 | 4 | 250 | 68 | 0.35 |
Package Included:
1x Stepper Motor
