JKM NEMA8 1.820 Hybrid Stepper Motor Two Phase 30mm Motor For CNC Mill Router
Price
$14.87
Secure Rocket Network checkout
Description
Description:
JKM NEMA8 1.8°20 Hybrid Stepper Motor Two Phase 30mm Motor For CNC Mill Router Cutter
Specification:
Brand: JKM
Model: JK20HS30-0604
Motor length: 30mm
Diameter of axle: 4mm
The front shaft length: 10mm
Outgoing line: 300mm (Plug is not included)
Certification: CE
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, ect.
Genaral Specification:
Electrical Specification:
Genaral Specification:
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩMin., 500VDC |
| Dielectric Strength | 500VAC for 1 minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
Electrical Specification:
| Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | Kg | |
| JK20HS30-0604 | 1.8 | 30 | 0.60 | 6.5 | 1.5 | 180 | 4 | 2 | 0.06 |
Features:
High holding torque at high speed.
A stepper motor is an electric motor that is able to create sharp movements.
It is widely used in 3D printer, monitor / Medical/Textile/ Packaging Machinery, Stage Lighting,ect.
Wiring Diagram:
Package Included:
Package Included:
1x Hybrid Stepping Motor
More Details:
More Details:

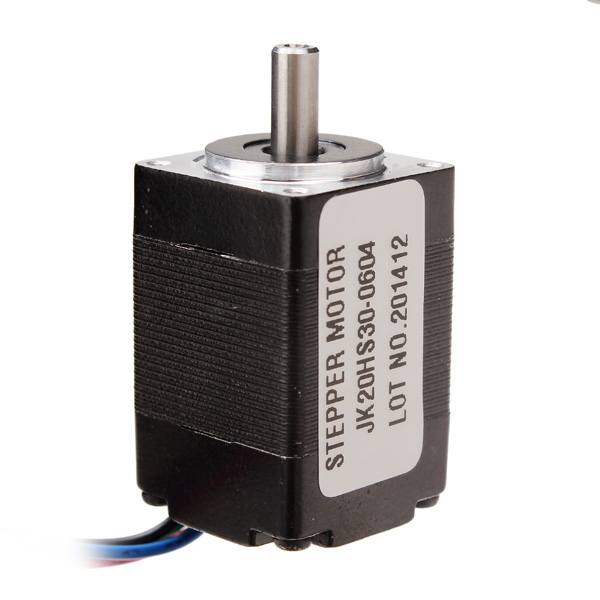

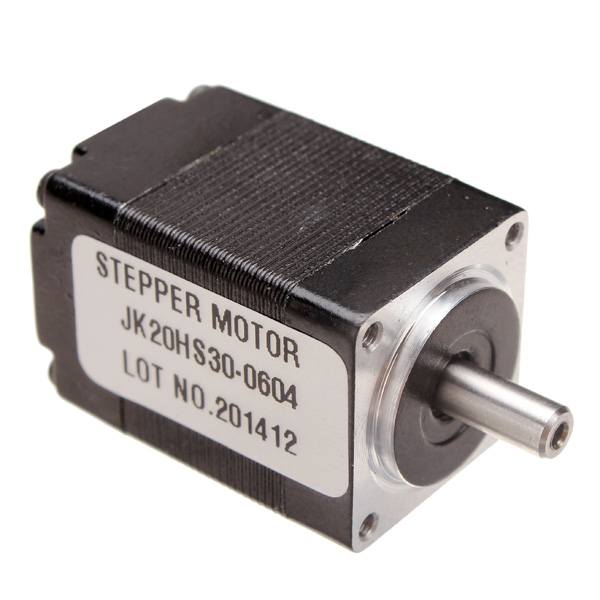

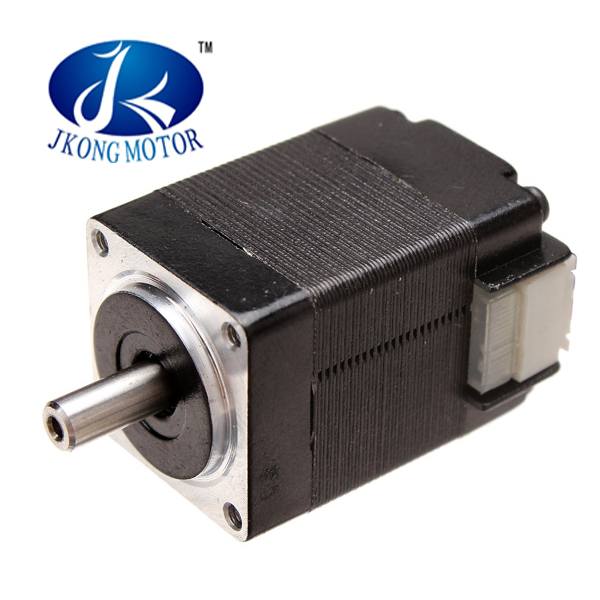

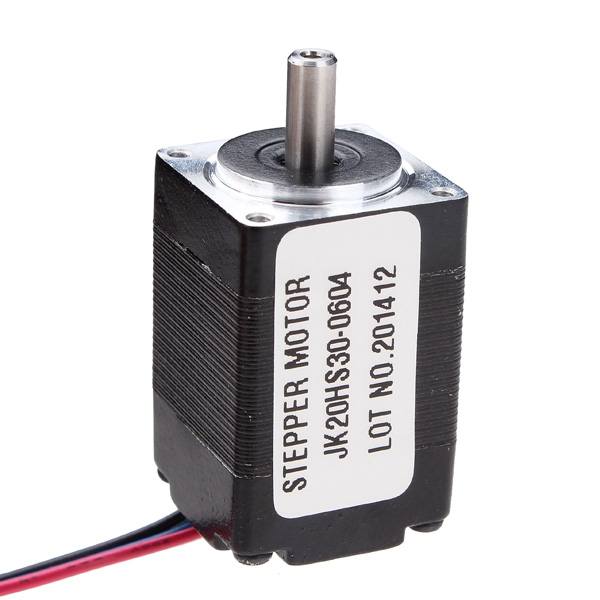

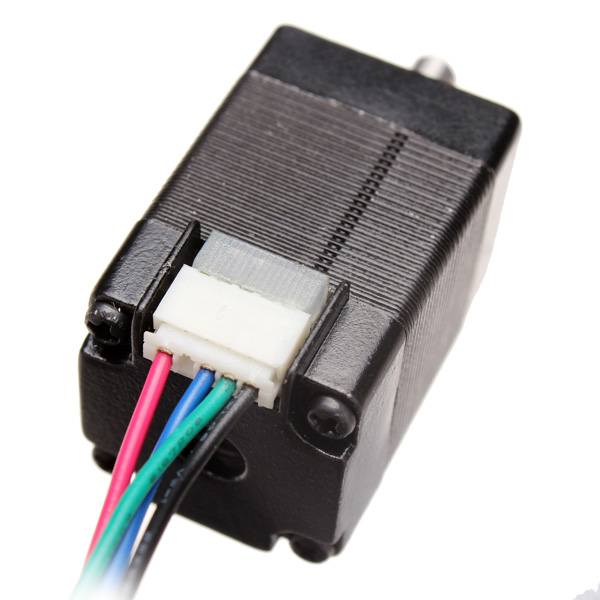

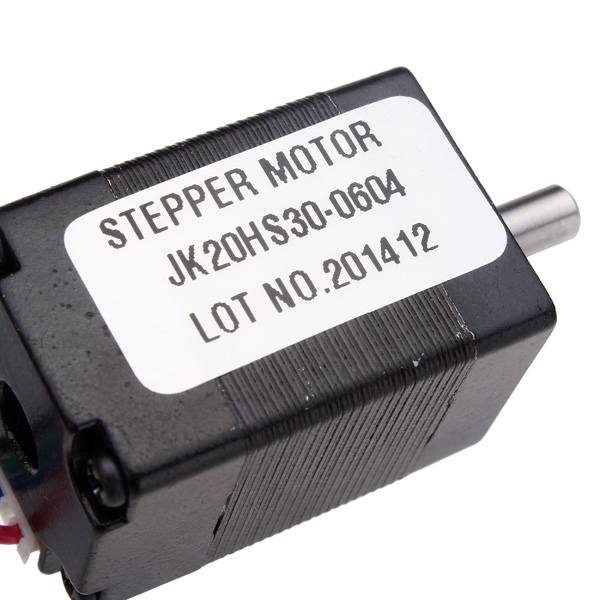

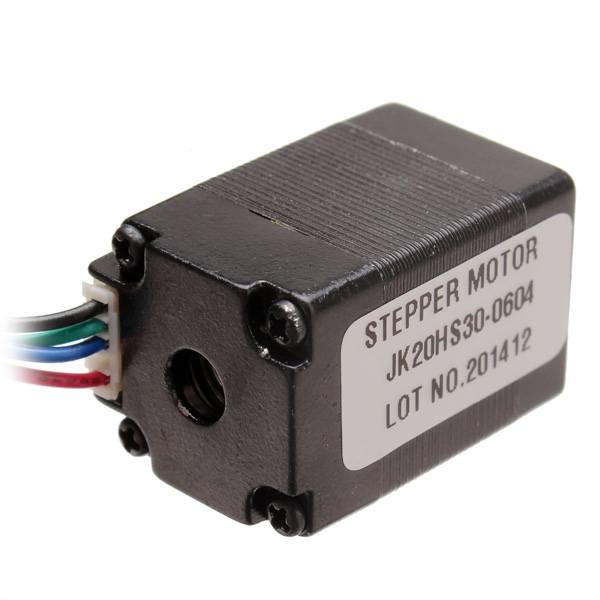

Product photos
Full images
