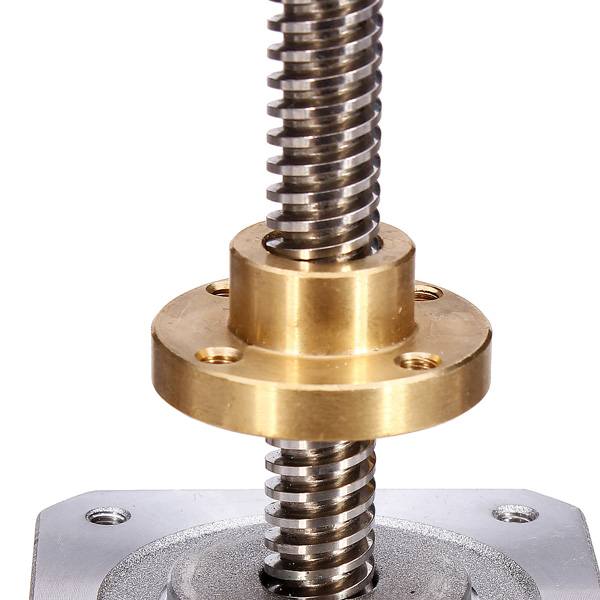

JKM NEMA17 42 Linear Stepper Motor Trapezoidal Screw 320MM 0.32NM
Price
$29.19
Secure Rocket Network checkout
Description
Description:
JKM NEMA17 42 Linear Stepper Motor Trapezoidal Screw 320MM 0.32NM
Brand: JKM
Model: JK42HS34-1334
Rated Power: 3W
Rated Voltage: 2.8V
Rated Current: 1.33A
Type: Linear Stepper Motor
Screw Type: trapezoidal screw
Screw diameter: 8mm
Screw length: 325mm
Size: 42MM * 42MM * 34MM

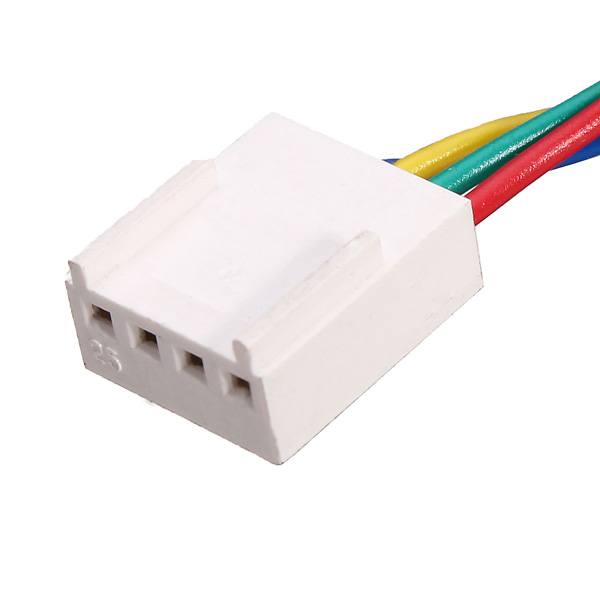

Outgoing line: 600mm (Plug is included)
Certification: CE,ROHS
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.
Electrical Specifications:
General Specifications:
Features:
High holding torque at high speed.
Average current control, 2-phase sinusoidal output current drive.
A stepper motor is an electric motor that is able to create sharp movements.
It is widely used in 3D printer, monitor / Medical/Textile/ Packaging Machinery, Stage Lighting,ect.
Package included:
1x Linear Stepper Motor
JKM NEMA17 42 Linear Stepper Motor Trapezoidal Screw 320MM 0.32NM
Brand: JKM
Model: JK42HS34-1334
Rated Power: 3W
Rated Voltage: 2.8V
Rated Current: 1.33A
Type: Linear Stepper Motor
Screw Type: trapezoidal screw
Screw diameter: 8mm
Screw length: 325mm
Size: 42MM * 42MM * 34MM
Outgoing line: 600mm (Plug is included)
Certification: CE,ROHS
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.
Electrical Specifications:
Model | Step Angle ( ° ) | Motor Length (mm) | Rate Voltage (V) | Rate Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (kg.cm) | Lead Wire (NO.) | Rotor Inertia (g.cm) | Motor Weight (KG) |
JK42HS34-1334 | 1.8 | 34 | 2.8 | 1.33 | 2.1 | 2.5 | 2.6 | 4 | 34 | 0.22 |
General Specifications:
Step Accurency | Temperature RIse | Ambient Temperature Range | Insulation Resistance | Dielectric Strength |
±5% | 80℃ Max. | 20 ℃ ~+50℃ | 100MΩ Min.50V DC | 500V AC 1minute |
Features:
High holding torque at high speed.
Average current control, 2-phase sinusoidal output current drive.
A stepper motor is an electric motor that is able to create sharp movements.
It is widely used in 3D printer, monitor / Medical/Textile/ Packaging Machinery, Stage Lighting,ect.
Package included:
1x Linear Stepper Motor

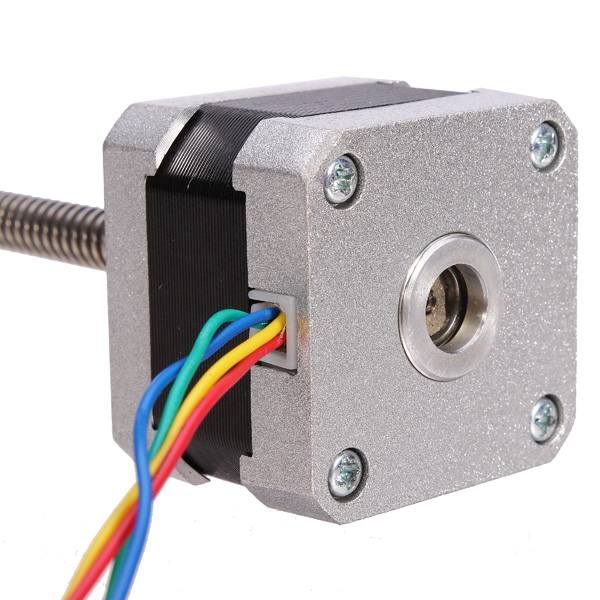

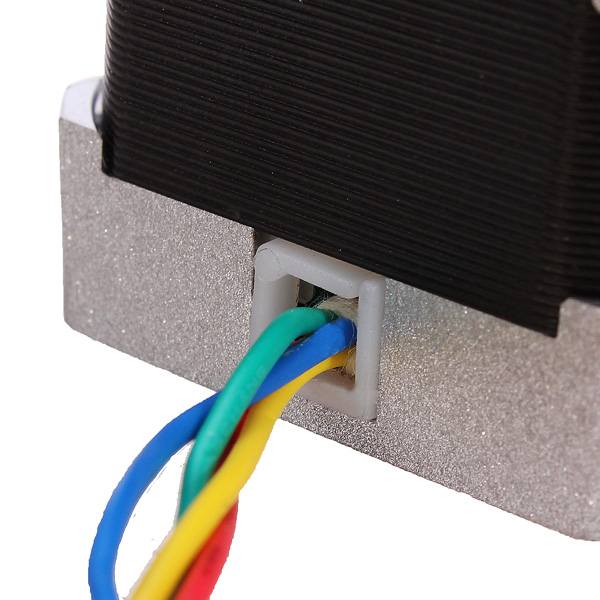

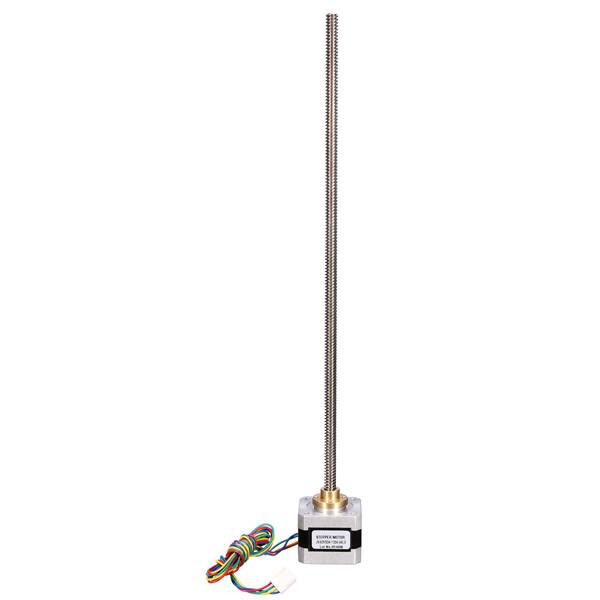

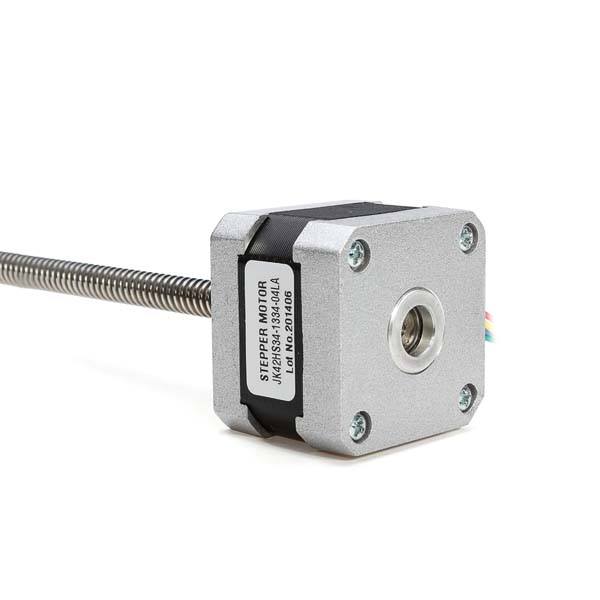

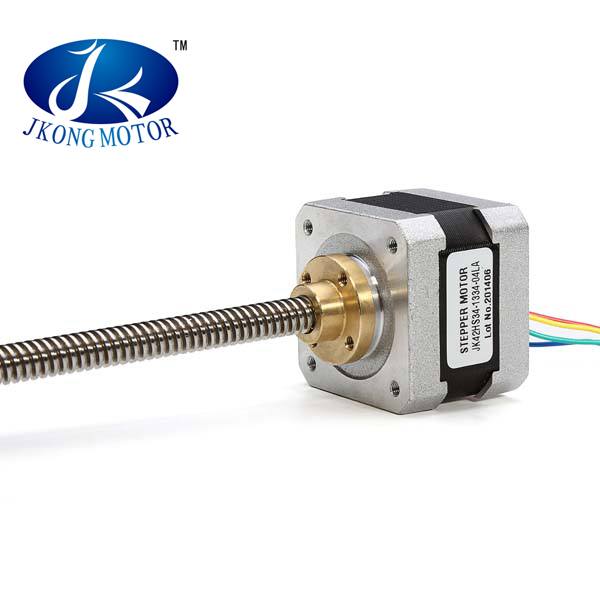

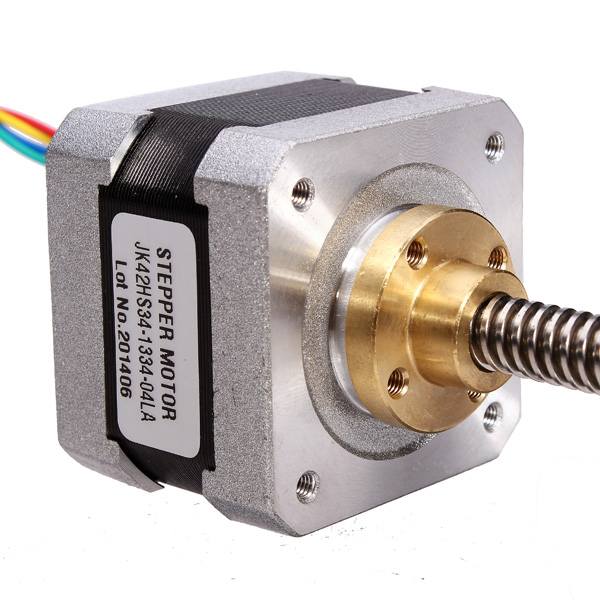

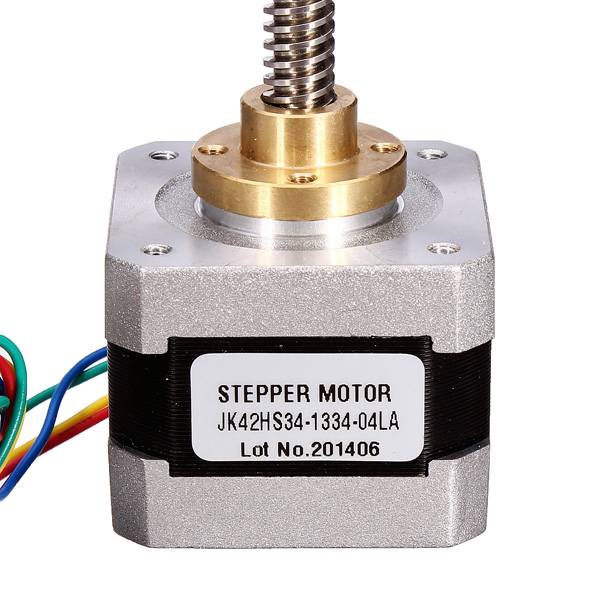

Product photos
