JKM NEMA11 Stepper Motor 1200g.cm/0.67A Mill Laser Engraving
Price
$17.48
Secure Rocket Network checkout
Description
Description:

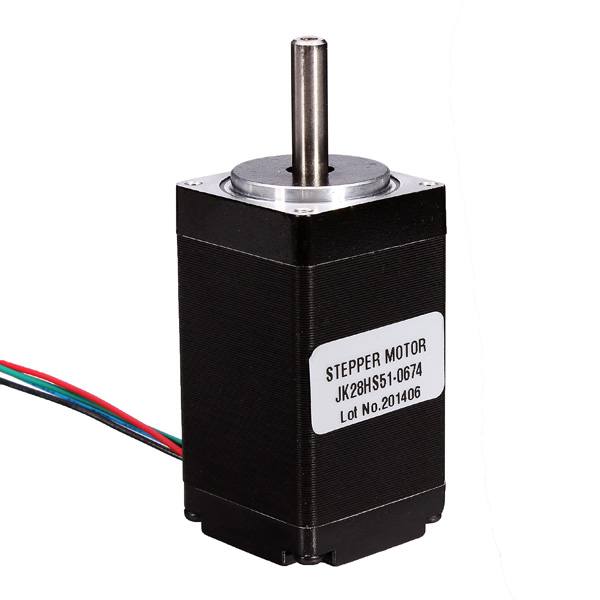

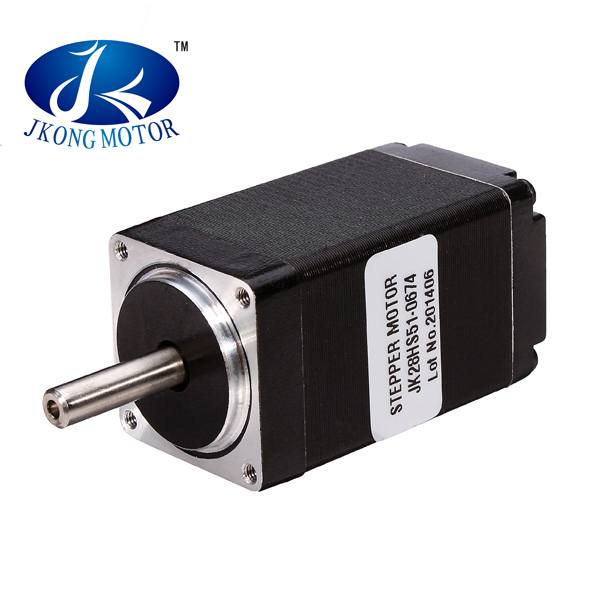

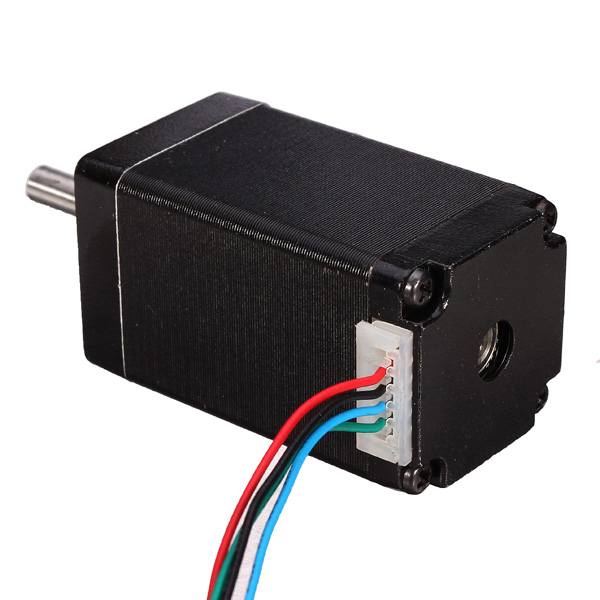

JKM NEMA11 Stepper Motor 1200g.cm/0.67A CNC Router Cut Mill Laser Engraving
Brand: JKM
Model: JK28HS51-0674
Rated Power:3W
Rated Voltage: 12V
Type: Hybrid Stepping Motor
Size: 28MM * 28MM
Motor length: 51mm

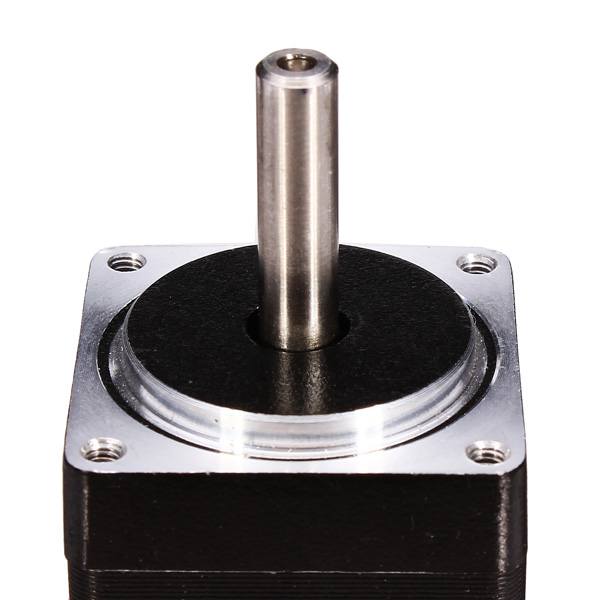

Diameter of axle: 5mm
The front shaft length: 18mm

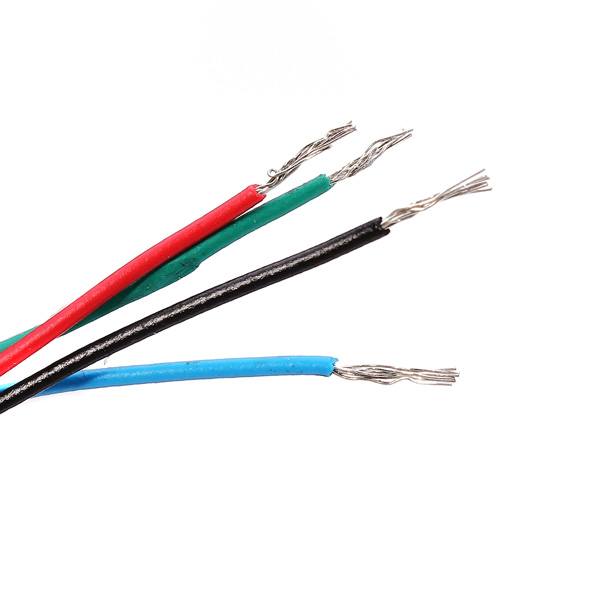

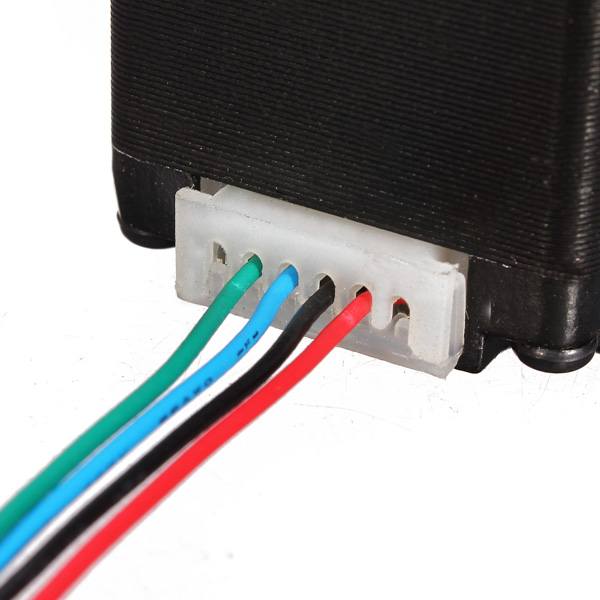

Outgoing line: 300mm (Plug is not included)
Certification: CE,ROHS
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.
Electrical Specifications:
Features:
High holding torque at high speed.
Average current control, 2-phase sinusoidal output current drive.
A stepper motor is an electric motor that is able to create sharp movements.
It is widely used in 3D printer, monitor / Medical/Textile/ Packaging Machinery, Stage Lighting,ect.
Size:
Package included:
1x Hybrid Stepping Motor
JKM NEMA11 Stepper Motor 1200g.cm/0.67A CNC Router Cut Mill Laser Engraving
Brand: JKM
Model: JK28HS51-0674
Rated Power:3W
Rated Voltage: 12V
Type: Hybrid Stepping Motor
Size: 28MM * 28MM
Motor length: 51mm
Diameter of axle: 5mm
The front shaft length: 18mm
Outgoing line: 300mm (Plug is not included)
Certification: CE,ROHS
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.
Electrical Specifications:
Model | Step Angle ( ° ) | Motor Length (mm) | Rate Voltage (V) | Rate Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (g.cm) | Lead Wire (NO.) | Rotor Inertia (g.cm) | Motor Weight (KG) |
JK28HS51-0674 | 1.8 | 51 | 12 | 0.67 | 9.2 | 7.2 | 1200 | 4 | 18 | 0.2 |
General Specifications:
Step Accurency | Temperature RIse | Ambient Temperature Range | Insulation Resistance | Dielectric Strength |
±5% | 80℃ Max. | 20 ℃ ~+50℃ | 100MΩ Min.50V DC | 500V AC 1minute |
Features:
High holding torque at high speed.
Average current control, 2-phase sinusoidal output current drive.
A stepper motor is an electric motor that is able to create sharp movements.
It is widely used in 3D printer, monitor / Medical/Textile/ Packaging Machinery, Stage Lighting,ect.
Size:
Package included:
1x Hybrid Stepping Motor
