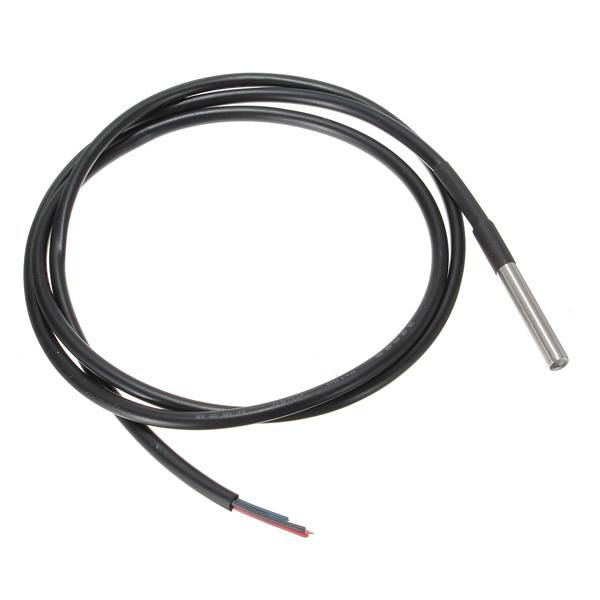

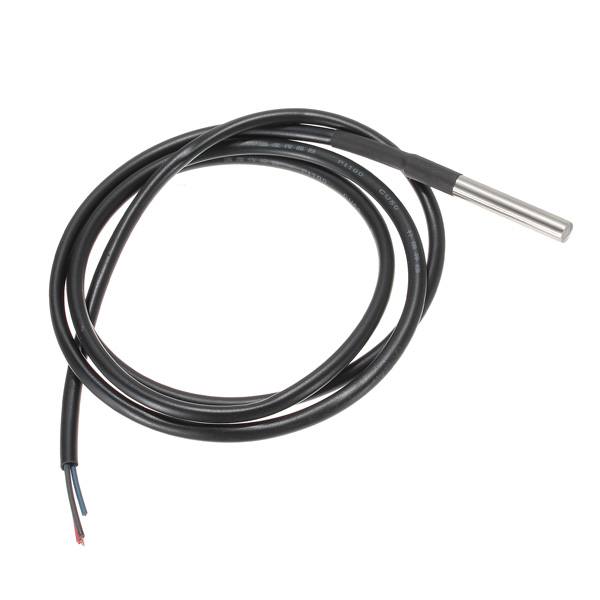

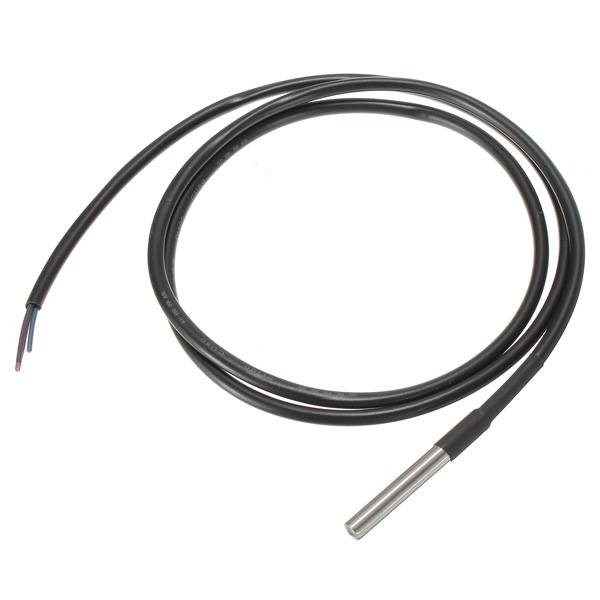

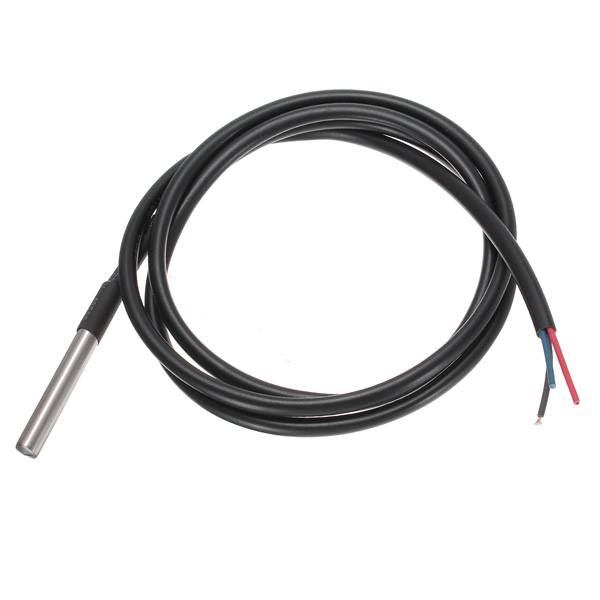

DS18B20 Waterproof Digital Temperature Sensor Probe
Price
$3.19
Secure Rocket Network checkout
Description
DS18B20 Waterproof Digital Temperature Temp Sensor Probe
Flexibility resistance, Better thermal conductivity.
Length of Cable : 108cm

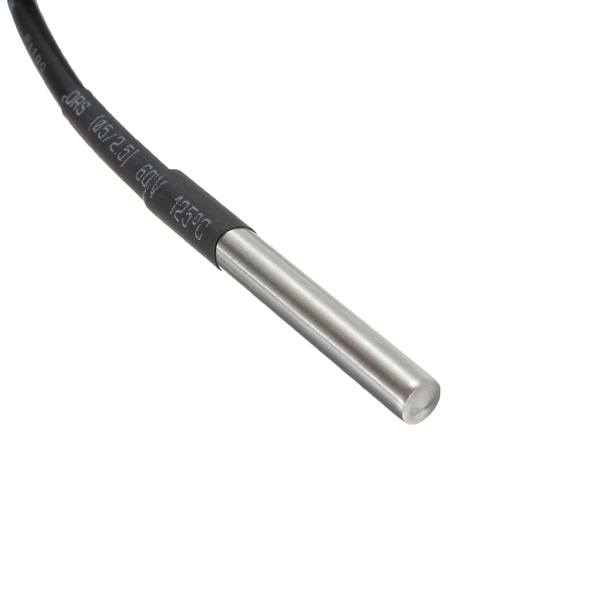

Size of Stainless steel sheath : 6 x 50mm
Power supply range : 3.0V to 5.5V
Operating temperature range : -55°C to +125°C (-67°F to +257°F)
Storage temperature range : -55°C to +125°C (-67°F to +257°F)
Accuracy over the range of -10°C to +85°C : ±0.5°C.
Application :
Thermostatic Controls; Industrial Systems; Consumer Products; Thermometers; Any Thermally Sensitive System.
Note :

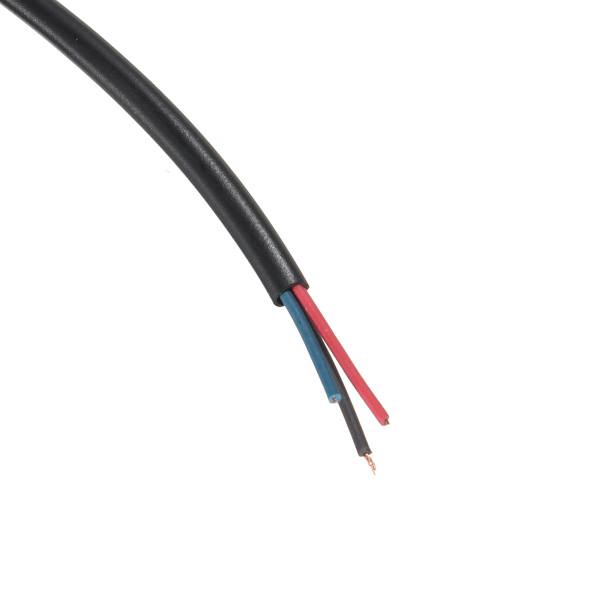

If your probe's wire received is Red, Yellow and Black, conncet your probe as Output lead : Red (VCC), Yellow(DATA), Black(GND) : )
Or if it comes with RED, GREED, YELLOW color, and please conncet your probe as : Output lead : Red (VCC), Green(DATA), Yellow(GND) : )
Package Includes :
1 x Thermal probe/sensor DS18B20
Other length of this sensor probe, can find in SKU230914
Details Pictures :
Flexibility resistance, Better thermal conductivity.
Length of Cable : 108cm
Size of Stainless steel sheath : 6 x 50mm
Power supply range : 3.0V to 5.5V
Operating temperature range : -55°C to +125°C (-67°F to +257°F)
Storage temperature range : -55°C to +125°C (-67°F to +257°F)
Accuracy over the range of -10°C to +85°C : ±0.5°C.
Application :
Thermostatic Controls; Industrial Systems; Consumer Products; Thermometers; Any Thermally Sensitive System.
Note :
If your probe's wire received is Red, Yellow and Black, conncet your probe as Output lead : Red (VCC), Yellow(DATA), Black(GND) : )
Or if it comes with RED, GREED, YELLOW color, and please conncet your probe as : Output lead : Red (VCC), Green(DATA), Yellow(GND) : )
Package Includes :
1 x Thermal probe/sensor DS18B20
Other length of this sensor probe, can find in SKU230914
Details Pictures :
